For a standard interlocking concrete-paver installation over a compacted aggregate base, the bedding layer should generally finish at approximately 1 inch thick after compaction. It must be even across the entire project rather than made thicker in low areas.
Concrete Masonry & Hardscapes Association guidance states that bedding sand should not exceed 1 inch after compaction. A layer thinner than approximately ¾ inch may not provide the intended bedding and interlocking action, while a thicker layer does not provide greater structural stability. is only the thin setting bed beneath the pavers. It is not the structural base and should never be used to replace missing or poorly compacted aggregate.
What Is the Sand Under Pavers Called?
The material immediately under conventional interlocking concrete pavers is called the bedding course or bedding sand.
Its purpose is to:
- Create a uniform setting surface
- Accommodate minor variations in paver thickness
- Help the units settle evenly during compaction
- Support proper interlock with the joint material
- Transfer loads uniformly to the compacted base beneath it
The bedding course is one part of a complete pavement system. A standard system normally includes:
- Prepared soil or subgrade
- Compacted aggregate base
- Thin bedding course
- Concrete pavers
- Joint sand
- Edge restraints
CMHA describes conventional interlocking concrete pavement as pavers installed over a compacted aggregate base and a roughly 1-inch bedding layer, followed by joint-sand installation and final compaction. hick Should Sand Be Under Pavers?
For a conventional sand-set concrete-paver project, use a consistent bedding layer that finishes at approximately 1 inch after compaction.
The layer should not vary significantly across the project. One section should not have 1 inch while another contains 2 or 3 inches to correct an uneven base.
CMHA guidance explains that bedding sand thicker than 1 inch after compaction does not create greater stability. Very thin bedding layers may also prevent the system from achieving the intended interlocking action during initial compaction. mmended bedding thickness
| Installation condition | Typical bedding-course approach |
|---|---|
| Standard concrete pavers over aggregate base | Approximately 1 inch after compaction |
| Uneven aggregate base | Correct and recompact the base; do not add extra sand |
| Open-graded base system | Approximately 1 inch of approved small, angular stone chip may be specified |
| Permeable interlocking pavement | Uses a separately designed open-graded stone bedding course |
| Pavers installed over concrete | Requires a project-specific drainage and bedding design |
| Snow-melting system | May require a specialised bedding design based on system specifications |
What Type of Sand Should Go Under Pavers?
For a traditional sand-set interlocking concrete-paver system, CMHA guidance calls for washed concrete sand conforming to the relevant ASTM C33 grading requirements.
The material should be:
- Clean
- Properly graded
- Durable
- Free from excessive fine particles
- Suitable for screeding
- Compatible with the aggregate base beneath it
CMHA cautions against using stone screenings or stone dust as conventional bedding sand because materials with excessive fine particles may hold water and perform poorly. an open-graded installation can intentionally use approved small, angular stone chips instead of conventional sand. Unilock, for example, describes a 1-inch bedding course of coarse sand or approved ⅛-inch open-graded chip depending on the base system. ect material therefore depends on the complete pavement design—not only on what is locally labelled “paver sand.”
Materials that should not be selected without verification
Avoid automatically using:
- Play sand
- Very fine masonry sand
- Beach sand
- Soil mixed with sand
- Unwashed material
- Stone dust in a conventional sand-set system
- Polymeric joint sand as the bedding layer
- Any material that conflicts with the paver manufacturer’s specification
Material names vary between suppliers. Ask for the grading or product specification rather than relying only on the name printed on the bag.
Why Sand Matters Beneath Pavers
Sand might seem like a simple material, but it plays a powerful role in paver installations. It acts as a cushion between the compacted base layer (usually gravel or crushed stone) and the pavers themselves. This sand bed allows you to level the pavers precisely, and it helps absorb minor shifts in the ground over time. The right amount of sand creates a stable and flexible surface that supports weight and handles weather changes without cracking or shifting.
Using too little sand can lead to uneven pavers and sinking spots. Using too much can make the surface feel unstable and cause pavers to move over time. Getting the balance right is what makes your paver project truly long-lasting.
How Much Sand Do You Actually Need?
The ideal depth for the sand layer beneath pavers is about 1 inch, or roughly 2.5 centimeters. This thickness allows enough material to create a smooth, level bedding surface while keeping the pavers firmly supported.

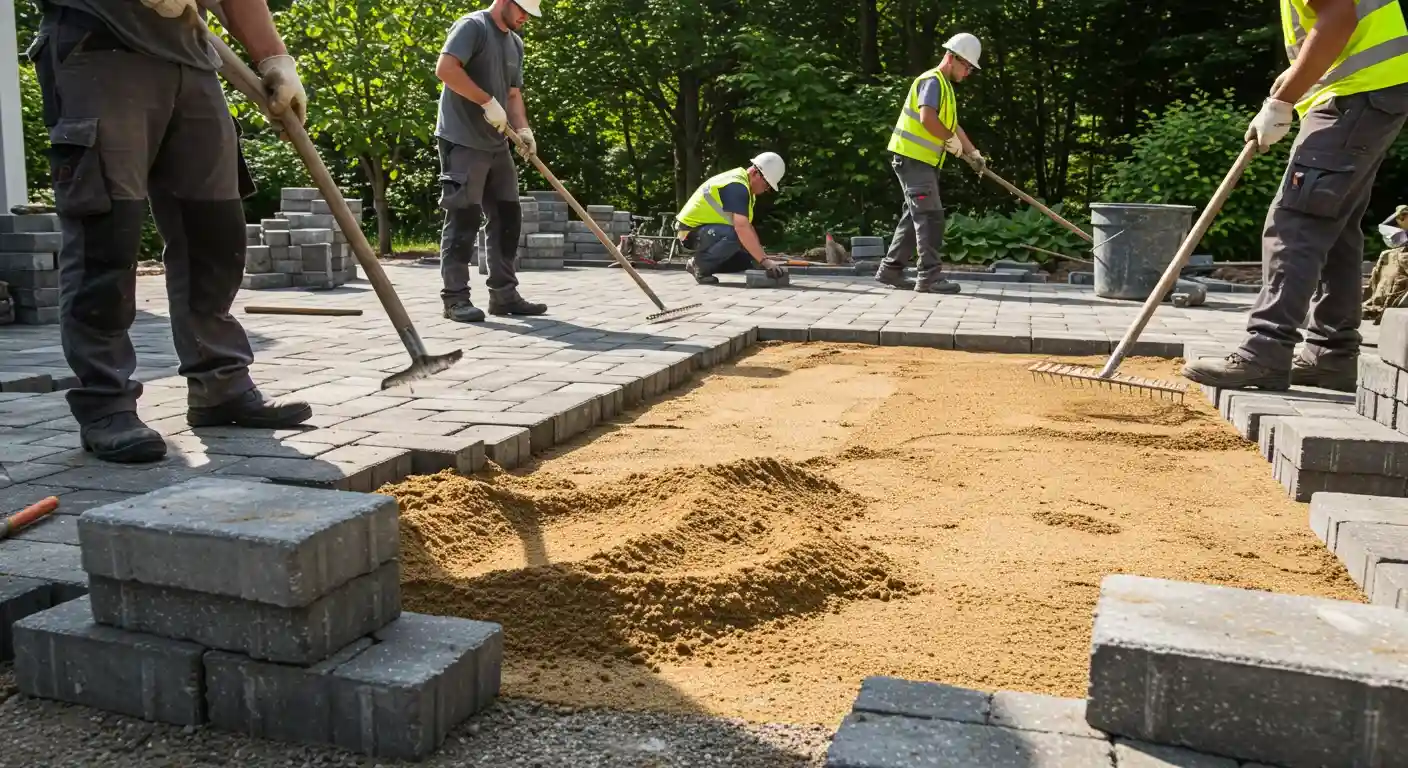

To achieve this, contractors often use what’s called a “screed layer.” This means they spread the sand evenly over the base, then drag a straight board (called a screed board) over rails or pipes to make the surface perfectly level and uniform. The pavers are then placed directly on this compacted, level bed.
It’s important not to compact the pavers into the sand too deeply. Instead, they should sit snugly on top. After installation, a plate compactor is run over the finished surface to gently press the pavers into the sand and lock everything in place.
What Type of Sand Should You Use?
Not all sand is created equal. For the bedding layer under your pavers, concrete sand is the best option. It’s coarse, sharp, and provides great stability. The angular grains of concrete sand interlock well and help prevent shifting. Avoid using fine sand, play sand, or beach sand—they’re too soft and smooth and can cause pavers to settle unevenly over time.
If you’re working with interlocking pavers and want added durability, consider using polymeric sand for the joints between pavers after installation. However, for the base layer beneath the pavers, stick with coarse, compactable sand.
Does the Sand Depth Change for Patios, Walkways and Driveways?
For standard interlocking concrete pavement, the bedding course generally remains a thin, consistent layer. The main structural changes between pedestrian and vehicular applications normally occur in:
- Base depth
- Base material
- Paver thickness
- Edge design
- Drainage design
- Subgrade preparation
- Engineering requirements
A driveway does not become stronger by adding several inches of bedding sand. Its strength comes from an appropriately designed and compacted pavement system.
Homeowners planning an outdoor living space can review our paver patio installation services in NYC.
For driveways, patios and walkways using concrete units, see our concrete paver installation services.
Preparing the Base Properly Matters Too
Before you add the sand, make sure your base layer—usually made of compacted crushed stone—is properly prepared. This layer should be around 4 to 6 inches deep for walkways and up to 8 inches for driveways. It must be compacted in layers to create a solid, load-bearing foundation.
Once your base is in place, only then should you spread the 1-inch layer of sand over it. Skipping the base or laying sand directly on soil will almost always lead to problems down the road, no matter how well you level the sand.
What Happens if You Use Too Much Sand?
It might seem harmless to add a little extra sand “just in case,” but this can lead to trouble. A layer thicker than 1 inch tends to compress unevenly, especially under pressure or moisture. This means your pavers could shift, rock, or sink after installation. Thick sand layers can also make it harder to maintain a level surface.
Remember, the goal is consistency and compaction. A thin, even layer of coarse sand over a well-compacted base creates the perfect balance of support and flexibility.
Conclusion
The amount of sand you use under your pavers might not be the most glamorous part of your project, but it’s one of the most important. A solid 1-inch layer of coarse bedding sand, evenly spread over a compacted base, will set the stage for a strong, level, and attractive paver installation. Take your time with this step, and your hardscape will reward you with years of stability and good looks.
